REF NAC3MPB

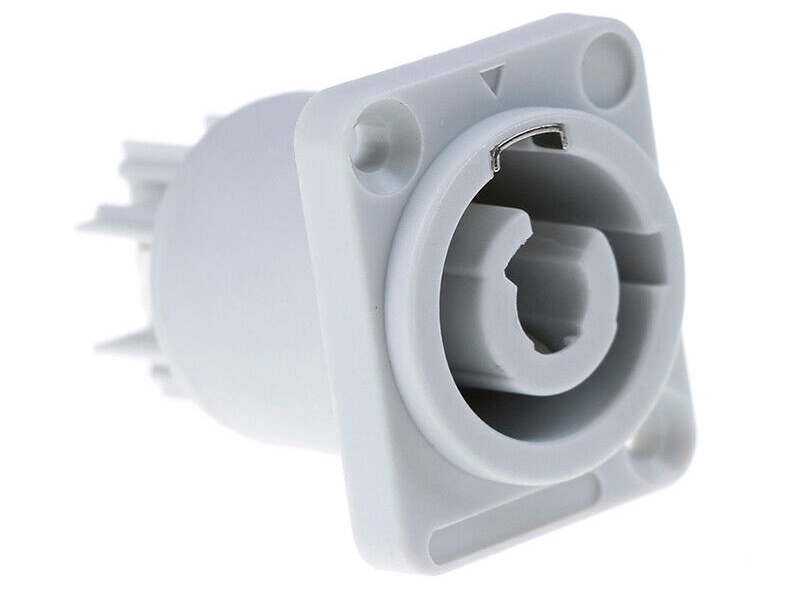

Neutrik Powercon Chassis Connector, Power-out 20A

by Neutrik
€2,70 (VAT excluded)
Contact resistance - = 3 mO
Dielectric strength - 4 kVdc / 2.8 kVac
Insulation resistance - > 0.1 GO (after damp heat test IEC 68-2-30)
Number of electronical contacts - 2 + PE
Rated current per contact - 20 A rms
Rated voltage - 250 V ac
Lifetime - > 1000 mating cycles
Locking device - Quick Lock
Mounting direction - front
Chassis shape - D
Contact plating - 2 µm Ag
Locking element - Steel Ck67
Shell - Polyamide (PA 6.6 30 % GR)
Contacts - Bronze (CuNi1Si0.2)
Flammability - UL 94 V-0
Temperature range - -30 °C to +80 °C
Coding - B-type for power outlet (color coding gray)
