REF NAC3FCA

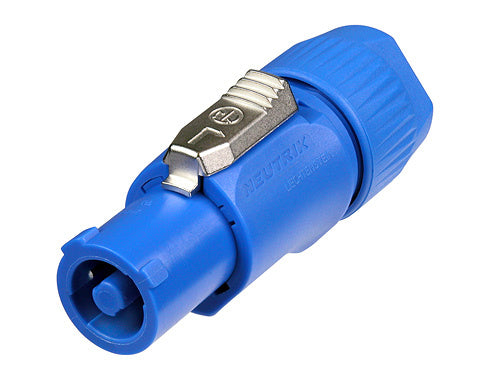

Neutrik Powercon Neutrik Powercon Cable Connector, Power-in 20A

by Neutrik
€5,10 (VAT excluded) / Uni
Available immediately
Login to see discounted prices
Weight
1 Kg
Contact resistance = 3 mO
Dielectric strength - 4 kVdc / 2.8 kVac
Insulation resistance - > 0.1 GO (after damp heat test IEC 68-2-30)
Number of electronical contacts - 2 + PE
Rated current per contact - 20 A rms
Rated voltage - 250 V ac
Cable O.D. - 6 - 15 mm (1)
Lifetime - > 1000 mating cycles
Wiresize - 2,5 mm²
Wiresize - 14 AWG
