REF
RODA.100E

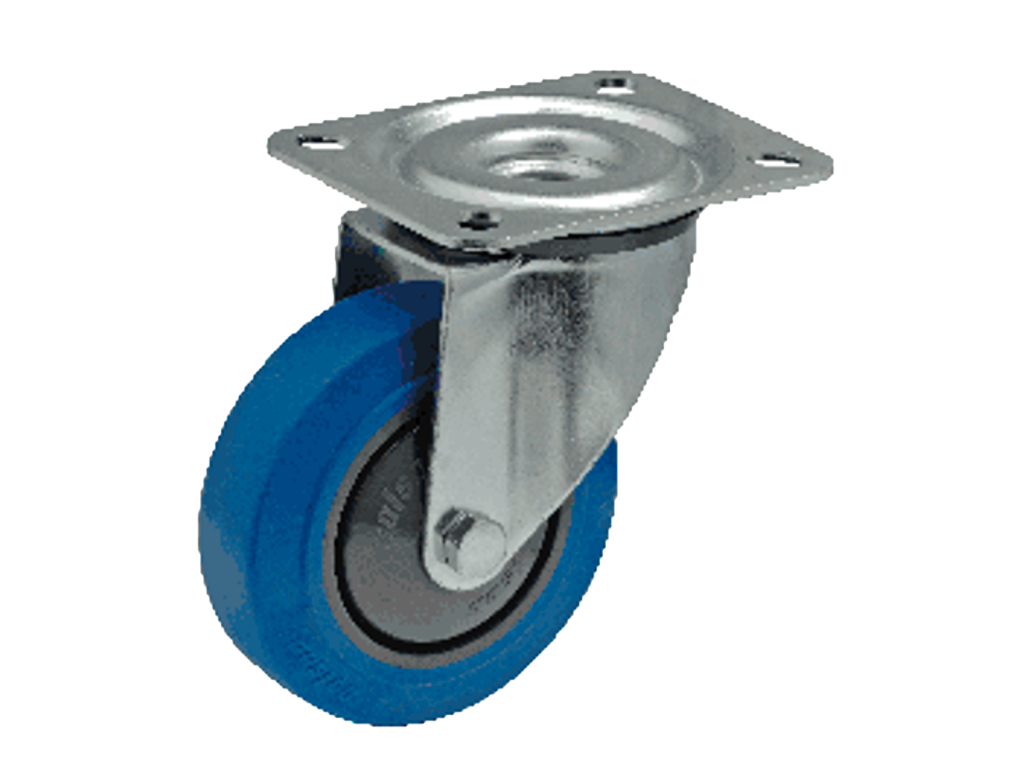

Tente, Swivel wheel Ø100mm (Cap.100Kg)
€7,30
(hors TVA)
/ Uni
Produit de production prioritaire

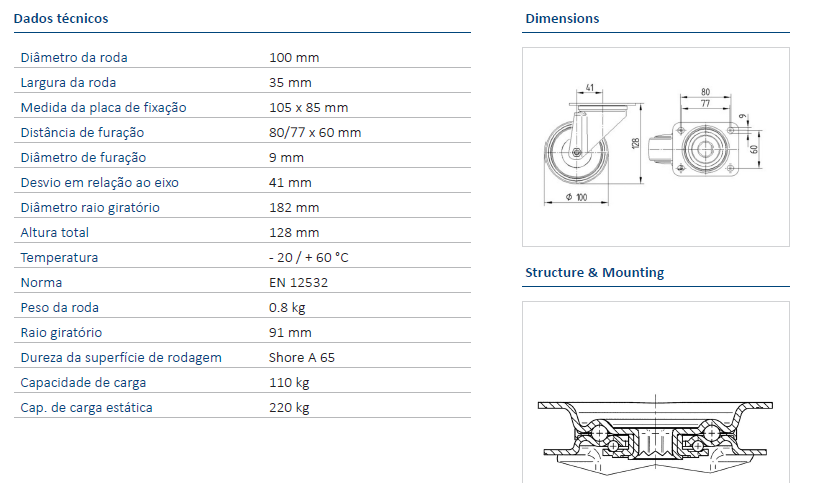

Wheel suitable for use in flight cases
Diameter 100 mm
Width of Tread 34 mm
Size of Plate 105 x 85 mm
Plate hole centres 80/77 x 60 mm
Plate hole 9 mm
Offset 41 mm
Swivel Interference 182 mm
Overall height 128 mm
Temperature - 20 / + 80 °C
Standard EN 12532
Weight 0.77 kg
Swivel Radius 91 mm
Hardness of tread Shore A 64
Load capacity 100 kg
Load capacity (static) 200 kg
Diameter 100 mm
Width of Tread 34 mm
Size of Plate 105 x 85 mm
Plate hole centres 80/77 x 60 mm
Plate hole 9 mm
Offset 41 mm
Swivel Interference 182 mm
Overall height 128 mm
Temperature - 20 / + 80 °C
Standard EN 12532
Weight 0.77 kg
Swivel Radius 91 mm
Hardness of tread Shore A 64
Load capacity 100 kg
Load capacity (static) 200 kg
Suitable for
weel for flight case
