REF
NAC3MPA

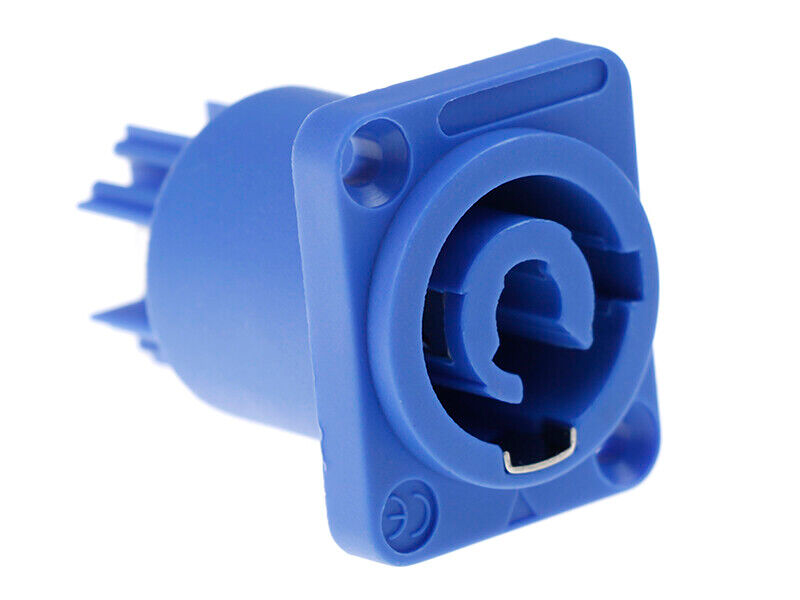

NEUTRIK POWERCON Powercon Plug IN Panel NAC3MPA Neutrik
by NEUTRIK
€3,20
(VAT excluded)
/ Uni
Priority production products
Contact resistance - = 3 mO
Dielectric strength - 4 kVdc / 2.8 kVac
Insulation resistance - > 0.1 GO (after damp heat test IEC 68-2-30)
Number of electronical contacts - 2 + PE
Rated current per contact - 20 A rms
Rated voltage - 250 V ac
Lifetime - > 1000 mating cycles
Contact plating - 2 µm Ag
Contacts - Bronze (CuNi1Si0.2)
Flammability - UL 94 V-0
Temperature range - -30 °C to +80 °C
Dielectric strength - 4 kVdc / 2.8 kVac
Insulation resistance - > 0.1 GO (after damp heat test IEC 68-2-30)
Number of electronical contacts - 2 + PE
Rated current per contact - 20 A rms
Rated voltage - 250 V ac
Lifetime - > 1000 mating cycles
Contact plating - 2 µm Ag
Contacts - Bronze (CuNi1Si0.2)
Flammability - UL 94 V-0
Temperature range - -30 °C to +80 °C
