Neutrik

Dummy-plate to cover D-size cutouts

Dummy-plate to cover D-size cutouts

3 pole female cable connector with Nickel housing and silver contacts

Dummy-plate to cover D-size cutouts

Cable connector carrier consists of a nickel shell, chuck and boot. The boot (same as X-series) is suitable for cable diameters from 3.5 - 8 mm. For non pre-assembled cables only. Cable connector carrier does not include a RJ45 plug. The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution. ATTENTION: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

Right angle CAT5e jack for space saving connections on the rear Accommodates NE8MC* or any standard RJ45 plugs Approved latch lock system Mountable from the front or rear of the panel Complies with CAT5e according to TIA / EIA 568B and ISO / IEC 11801 standards

- Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems; - Rugged diecast shell for best reliability; - Professional look and compact space saving design, based on the XX Series.

Tip, Ring, Sleeve contact - Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems; - Rugged diecast shell for best reliability; - Professional look and compact space saving design, based on the X Series (XLR worldwide accepted standard).

- Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems; - Rugged diecast shell for best reliability; - Professional look and compact space saving design, based on the XX Series.

Tip, Ring, Sleeve contact - Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems; - Rugged diecast shell for best reliability; - Professional look and compact space saving design, based on the X Series (XLR worldwide accepted standard).

USB 3.0 feedthrough adapter Reversible insert offering type A or B on front or rear end Standard D-shape housing Removable screen for chassis grounding Meets USB 3.0 specifications

8 pole cable connector, latch lock, chuck type strain relief for cables 8 - 20 mm diameter, 30 A continuous per contact

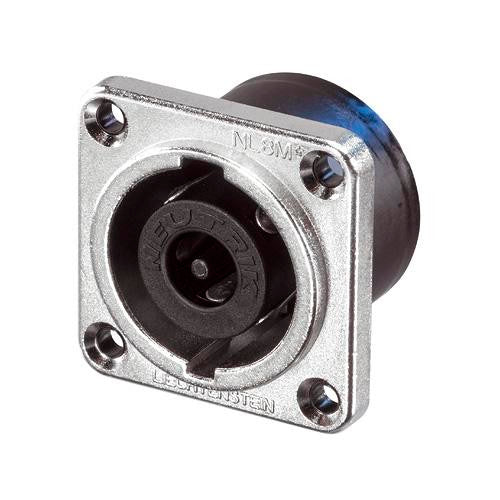

8 pole chassis connector, nickel metal square G-size flange, countersunk thru holes, 3/16" flat tabs

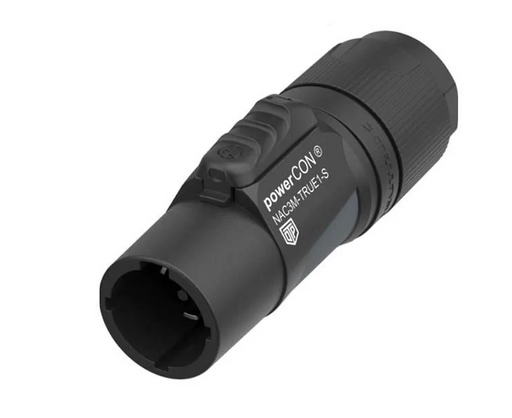

The powerCON TRUE1 is a locking true mains connector for harsh and demanding applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live. Features and Benefits Heavy duty sealed power connector for harsh and demanding environment Uses high impact UV-resistant materials Lockable single phase connector Extremely robust and reliable ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1 UL and CSA Certified According to UL 60320-1 and CSA 22.2 No. 60320-1 IP65 and IP67 (mated or with closed cap) True mains connector with breaking capacity (CBC) Easy and reliable twist lock system Unique NEUTRIK locking bushing and strain relief for cable diameters 6 mm to 12 mm (0.23 – 0.47 inches)

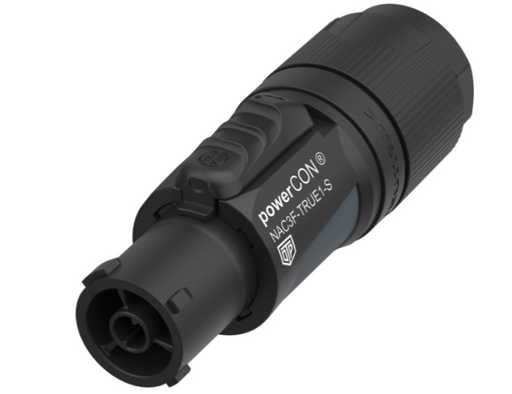

The powerCON TRUE1 is a locking true mains connector for harsh and demanding applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live. Features and Benefits Heavy duty sealed power connector for harsh and demanding environment Uses high impact UV-resistant materials Lockable single phase connector Extremely robust and reliable ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1 UL and CSA Certified According to UL 60320-1 and CSA 22.2 No. 60320-1 IP65 and IP67 (mated or with closed cap) True mains connector with breaking capacity (CBC) Easy and reliable twist lock system Unique NEUTRIK locking bushing and strain relief for cable diameters 6 mm to 12 mm (0.23 – 0.47 inches)

Contact resistance = 3 mO Dielectric strength - 4 kVdc / 2.8 kVac Insulation resistance - > 0.1 GO (after damp heat test IEC 68-2-30) Number of electronical contacts - 2 + PE Rated current per contact - 20 A rms Rated voltage - 250 V ac Cable O.D. - 6 - 15 mm (1) Lifetime - > 1000 mating cycles Wiresize - 2,5 mm² Wiresize - 14 AWG

5 pole female cable connector with Nickel housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

5 pole female receptacle, solder cups, Nickel housing, silver contacts The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding.

5 pole male cable connector with Nickel housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

5 pole male receptacle, solder cups, Nickel housing, silver contacts The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding.
