Combined ball corner and brace to suit 52 mm lidmaker - 1,5 mm Steel, zinc plated. Fixing holes: 5,1 mm. Weight: 72g

Combined ball corner and brace with stacking dimple cranked to suit 45mm lidmaker. (This corner is 2.5mm higher than the standard 4126) 1.5mm Steel zinc plated. Fixing holes 5.1mm.

Bar code scan window, allowing content with bar code to be scanned without removing from case.

Steel Bar Handle, black powder coated, mounted in recessed black plastic dish. Cutout 170 x 113mm. Fixing Holes 5.1mm

Recessed steel Bar Handle - Medium. 1 mm Steel, black powder coated. Cutout 170 x 112 mm. Fixing holes Ø 5.6 mm Weight: 550 g

Our V3, V4 and V5 Butterflies have a patented ´push-down` mechanism that lifts the hook out of the keeper plate on opening and leads it back into the dish on closing. This offers an ideal handling and minimises risk of injury and damage.

V4 Medium Butterfly with "push-down" function Steel, zinc plated Fixing Holes 5.1 mm Our V3, V4 and V5 Butterflies have a patented ´push-down` mechanism that lifts the hook out of the keeper plate on opening and leads it back into the dish on closing. This offers an ideal handling and minimises risk of injury and damage.

The same Large Butterfly "V3" with "push-down" function as in the 172511 but in a shorter dish. The entire mechanism is identical thereby having the same strength and loading capabilities. The dish is shorter giving a chunky look and easier use in smaller cases and flatter lids. Our V3, V4 and V5 Butterflies have a patented ´push-down` mechanism that lifts the hook out of the keeper plate on opening and leads it back into the dish on closing. This offers an ideal handling and minimises risk of injury and damage.

Plastic cabinet corner black - stackable. Fixing holes countersunk Ø 3.5 mm 10 mm internal radius. Weight: 23 g

Aperture approx. 95 x 95 mm Steel, zinc plated Mounting holes ø 4.1 mm

Aperture approx. 92 x 65 mm Steel, zinc plated Mounting holes ø 4.1 mm

High Quality Shoulder Strap with adjustable shoulder pad with anti-slip surface. Adjustable length from 106-178cm. •Material: Strap: Nylon, Shoulderpad: Synthetic Leather, Lenghtadjustment and Hooks: Metal •Width of strap: 38mm •Length double adjustable from 106-178cm, shoulderstrap with non-slipping surface Safe Load: max. 50Kg

Square case/cabinet corner 1.5 mm internal radius 1 mm Steel, zinc plated Fixing holes: 5,2 mm

This Corner is made to fit over 30 mm angle extrusion and the 6145 lid extrusion.

Case corner 3 leg 1.5 mm steel zinc plated Fixing holes 5.0 mm

Case corner - 3 leg 1 mm Steel, zinc plated Fixing holes: 5.1 mm

Briefcase drop handle Black plastic with nickel coverplate Weight: 70g Distance between fixing holes: 5,75 cm Max load: 25kg

Net pocket with zip - Velcro (Hooks) on back enable removal of attachment from case lid.

Net bag with zip Velcro (hooks) on backside Similar to 2808 but 330x260mm large so it´s big enough for A4 sized documents. Perfect for manuals, remote controls, CDs, etc. May save building an extra compartment for accessories in a flightcase.

Lid stay - Click stop. 1.5 mm Steel, nickel plated

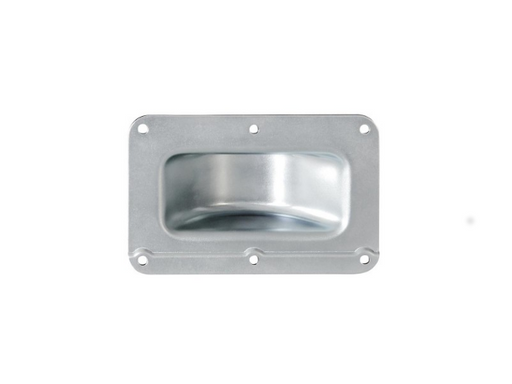

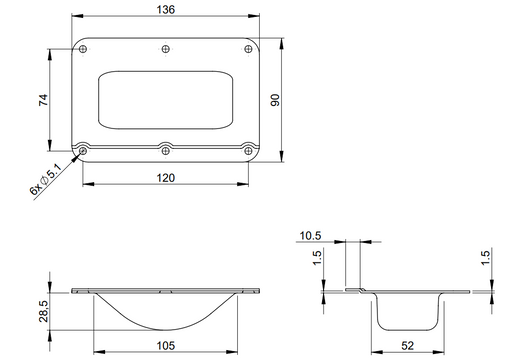

Castor dish for mounting on case lid to allow a case with castors up to 100 mm to be stacked on top 1,5 mm steel, zinc plated Fixing holes Ø 5,1 mm

Castor dish for mounting on case lid to allow a case with castors up to Ø100 mm to be stacked on top. 1,5 mm steel, zinc plated. Fixing holes Ø 5.1 mm.

Castor dish for mounting on case lid to allow a case with castors up to 100mm to be stacked on top. The crank in the dish allows it to be mounted over the aluminium edging. 1,5 mm steel, zinc plated. Fixing holes Ø 5,0 mm.

Castor dish for mounting on case lid to allow a case with castors up to 100 mm to be stacked on top 1,5 mm steel, zinc plated Fixing holes Ø 5,1 mm
